The New Benchmark for Aerial Surveying

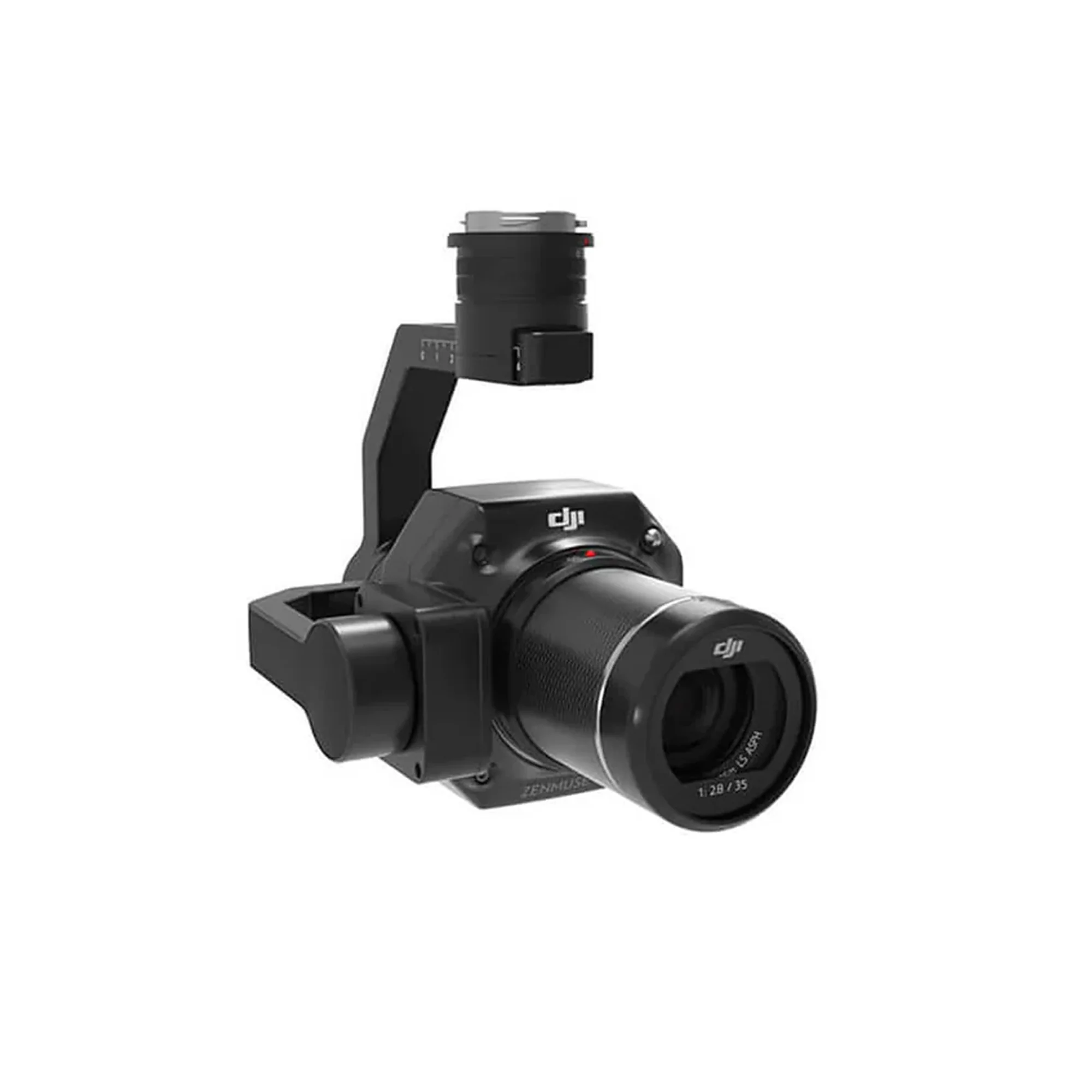

The Zenmuse P1 integrates a full-frame sensor with interchangeable fixed-focus lenses on a 3-axis stabilised gimbal. Designed for photogrammetry flight missions, it takes efficiency and accuracy to a whole new level.

Accuracy without GCPs
3 cm horizontally / 5 cm vertically
High Efficiency
3 km2 covered in a single flight
45 MP Full-frame Sensor
3-axis Stabilised Gimbal
Smart Oblique Capture
Global Mechanical Shutter
Shutter Speed 1/2000 Seconds
TimeSync 2.0 – synchronisation
at the microsecond level

Extraordinary Efficiency

The P1 includes a full-frame, low-noise high-sensitivity sensor that can take a photo every 0.7 s during the flight, and covering 3 km2 in a single flight.
Remarkable Accuracy

Equipped with a global mechanical shutter and the all-new TimeSync 2.0 system, which synchronises time across modules at the microsecond level, the Zenmuse P1 lets users capture centimeter-accurate data combined with the real-time position and orientation compensation technology.
Robust Versatility

Create 2D, 3D, and detailed models thanks to the integrated 3-axis gimbal that can be outfitted with 24/35/50mm lenses and the Smart Oblique Capture feature.

Efficiency to Cover It All

Full-frame Camera

– 45MP Full-frame Sensor
– 4.4μm Pixel Size
– Low-noise, high sensitivity imaging extends daily operational time
– Take a photo every 0.7 s during the flight
– TimeSync 2.0 aligns the camera, flight controller, RTK module, and gimbal at the microsecond level

Flexibility to Capture It All

Multiple Fixed-focus Lens Options

– Global Mechanical Shutter, , Shutter Speed 1/2000 Seconds
– Sends the median exposure pulse in microseconds
– Supports 24/35/50mm lenses with DJI DL mounts

Smart Oblique Capture

Cover 7.5 km2 in a single workday with the P1. Elevate the efficiency of your oblique photography mission using Smart Oblique Capture, where the gimbal automatically rotates to take photos at the different angles needed. Only photos essential to the reconstruction will be taken at the edge of the flight area, increasing the efficiency of post processing by 20% to 50%.

Smart Data Management

Mission result files are automatically associated with the Mission Name and Mission Time.
A centralised storage location for photos, GNSS data, and TimeStamps.MRK files.
The image metadata contains the camera’s intrinsic and extrinsic parameters and the status of RTK.

Fieldwork Report

Verify data quality immediately post-flight by checking the position data and number of the images acquired, as well as RTK status and positioning accuracy.

2D Orthomosaic Mission

Generate orthomosaics without GCPs using the P1, perfect for medium to large-area operations.

3D Oblique Mission

Effortlessly acquire oblique images from multiple angles that meet 3D modeling requirements across industries such as urban planning and centimeter-level accurate cadastral surveys to serve 3D reality models and smart city planning.

Detailed Modeling Mission

Acquire ultra-high resolution image data of vertical or slanted surfaces from a safe distance that faithfully recreates fine textures, structures, and features, for detailed reconstructions, geological surveys, heritage site conservation, hydraulic engineering, and more.

Application Scenarios

Application Scenarios

Capture data that meet the 1:500 scale accuracy requirements without GCPs.
Cadastral Surveying

Quickly generate centimeter-level accurate 3D reality models.
AEC and Surveying

Manage the full project lifecycle with 2D and 3D drone data.
Natural Resource Management

Measure, classify, or determine the ownership of water bodies and forests.
Geological Investigation

Safely gather millimeter-level accurate aerial data of geological hazard sites.
Disaster Site Modeling

Gain real-time overviews of vast disaster-struck areas to help teams make critical decisions.
